Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder

Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder

Nama merek:	1
Nomor Model:	NF701
Moq:	1
harga:	2000$
Ketentuan Pembayaran:	L/C, D/P, T/T, Western Union
Kemampuan Penyediaan:	500/bulan

Informasi Rinci

Deskripsi produk

Informasi Rinci

Place of Origin:

China

Product Name:

fiber optic gyroscope north finder

Akurasi pencarian utara (1σ):

≤ 0,3 ° (NF701A); ≤ 0,5 ° (NF701B)

Akurasi horisontal:

≤ 0.05 °

Lingkar:

≤ 0,5 °

Antarmuka:

RS422

Catu daya:

DC 12V ~ 24V

Berat:

≤ 2 kg

Dimensi:

115 × 90 × 110mm

Kemasan rincian:

Spons + karton

Menyediakan kemampuan:

500/bulan

Menyoroti:

compact fiber optic gyroscope north finder

lightweight gyro north finder

0.3° precision fiber optic gyroscope

Deskripsi produk

Compact and Lightweight 0.3° Advanced Fiber Optic Gyroscope North Finder

Product Specifications

Attribute	Value
Product Name	fiber optic gyroscope north finder
North seeking accuracy (1σ)	≤ 0.3 ° (NF701A); ≤ 0.5 ° (NF701B)
Horizontal accuracy	≤ 0.05 °
Circumference	≤ 0.5 °
Interface	RS422
Power supply	DC 12V ~ 24V
Weight	≤ 2 kg
Dimension	115 × 90 × 110mm

Product Overview

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.

Featuring an all-solid-state design with no moving parts, it ensures high reliability, long operational life, and low maintenance. Its compact, lightweight, and low-power construction allows seamless integration into dynamic platforms while maintaining fast alignment, stable performance, and robust resistance to harsh environments.

Technical Features

Fast operation: North seeking time ≤ 3 minutes
High precision: North seeking accuracy ≤ 0.3° (NF701A model)
Stable performance: Horizontal accuracy ≤ 0.05°
Compact design: Weighs ≤ 2 kg with dimensions of 115 × 90 × 110mm
Versatile power: Operates on DC 12V ~ 24V with peak consumption of 15W
Reliable interface: RS422 communication protocol
Automated operation: Self-check upon power-on with upper computer control

Environmental Specifications

Operating temperature: -40℃ to +70℃
Storage temperature: -55℃ to +85℃
Humidity resistance: Operates in relative humidity < 95%
Durable construction: Rust-free metal surfaces with intact coatings

Product Diagram

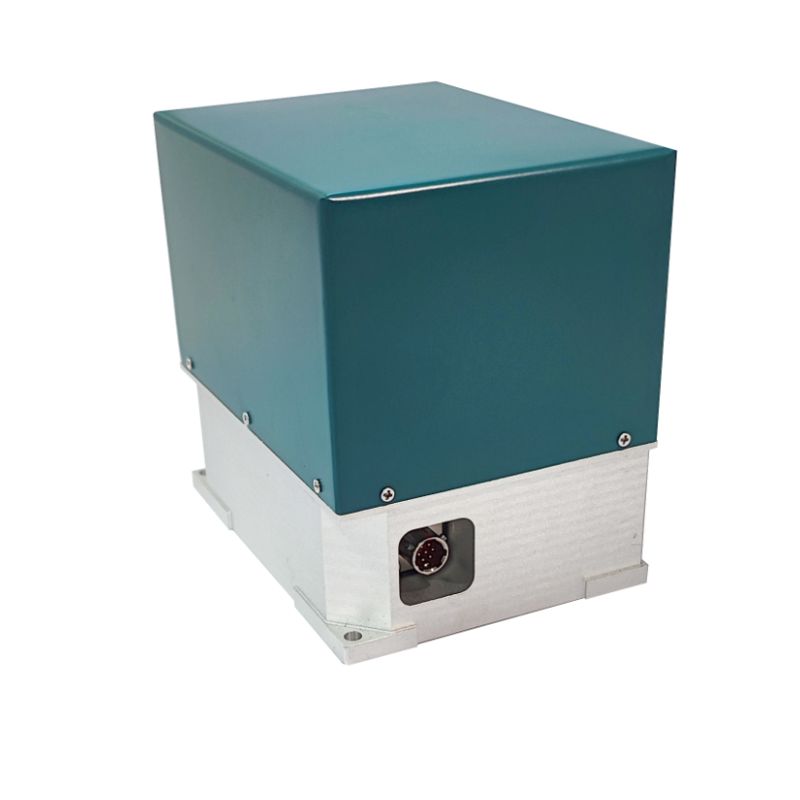

Fiber optic gyroscope north finder

Technical diagram showing dimensions and components
